Hydraulic Bolt Tensioners: The Ultimate Guide to Precision Bolting Technology
Hydraulic bolt tensioners represent a revolutionary advancement in industrial bolting technology, delivering unparalleled precision and reliability in critical applications. These sophisticated power tools stretch bolts or studs axially using controlled hydraulic pressure, enabling the nut to be tightened against the joint without inducing harmful torsional stress—a game-changer for industries where joint integrity can mean the difference between safe operation and catastrophic failure.
Unlike conventional torque wrenches that apply rotational force with inherent friction-related uncertainties, hydraulic tensioners achieve bolt loads with remarkable accuracy—typically within ±10% of target specifications compared to the much wider scatter of torque methods. This precision makes them indispensable for high-stakes applications in oil and gas pipelines, wind turbine installations, pressure vessels, and offshore platforms where even distribution of clamping forces across multiple bolts is absolutely critical.

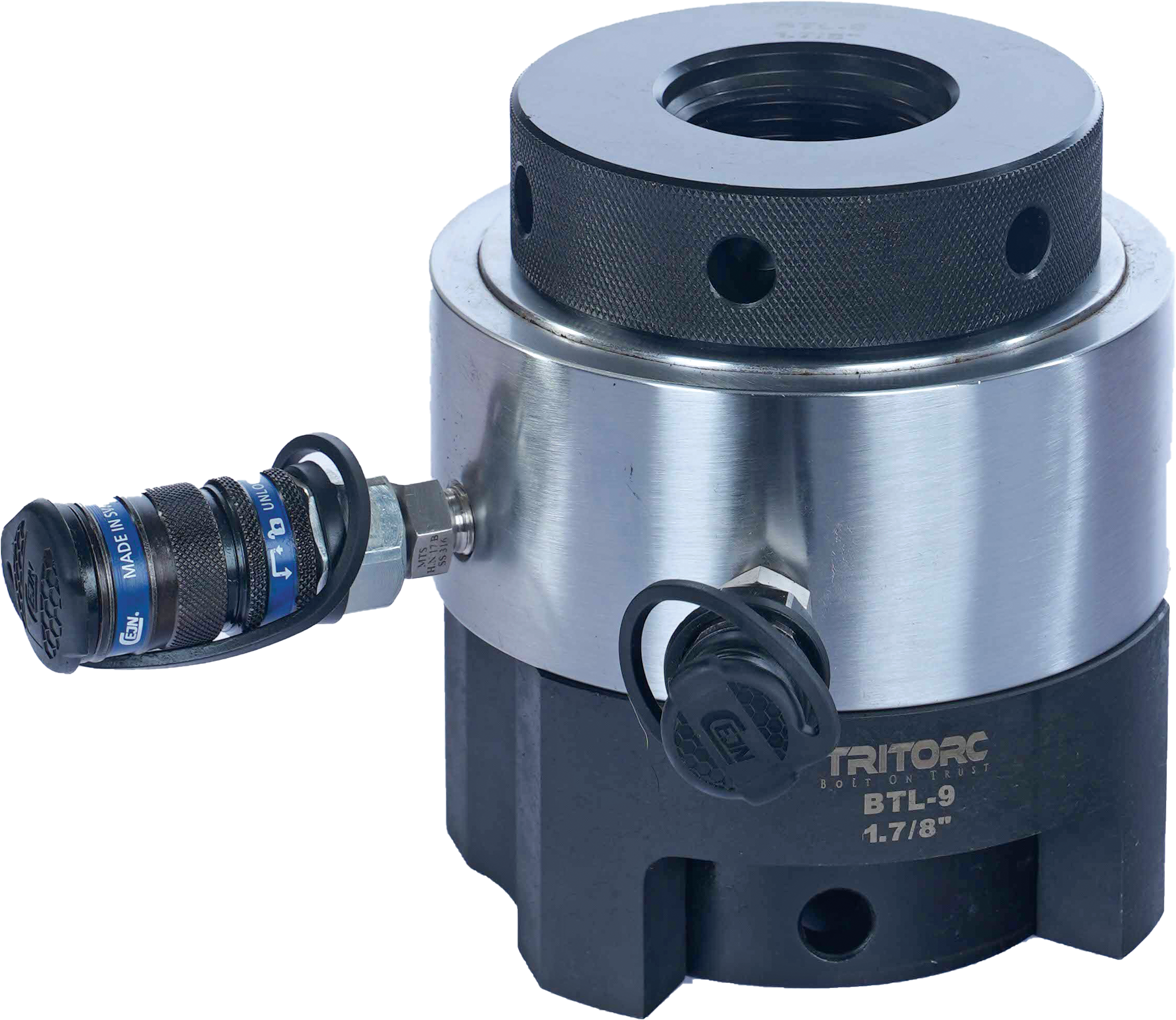

What is a Hydraulic Bolt Tensioner?

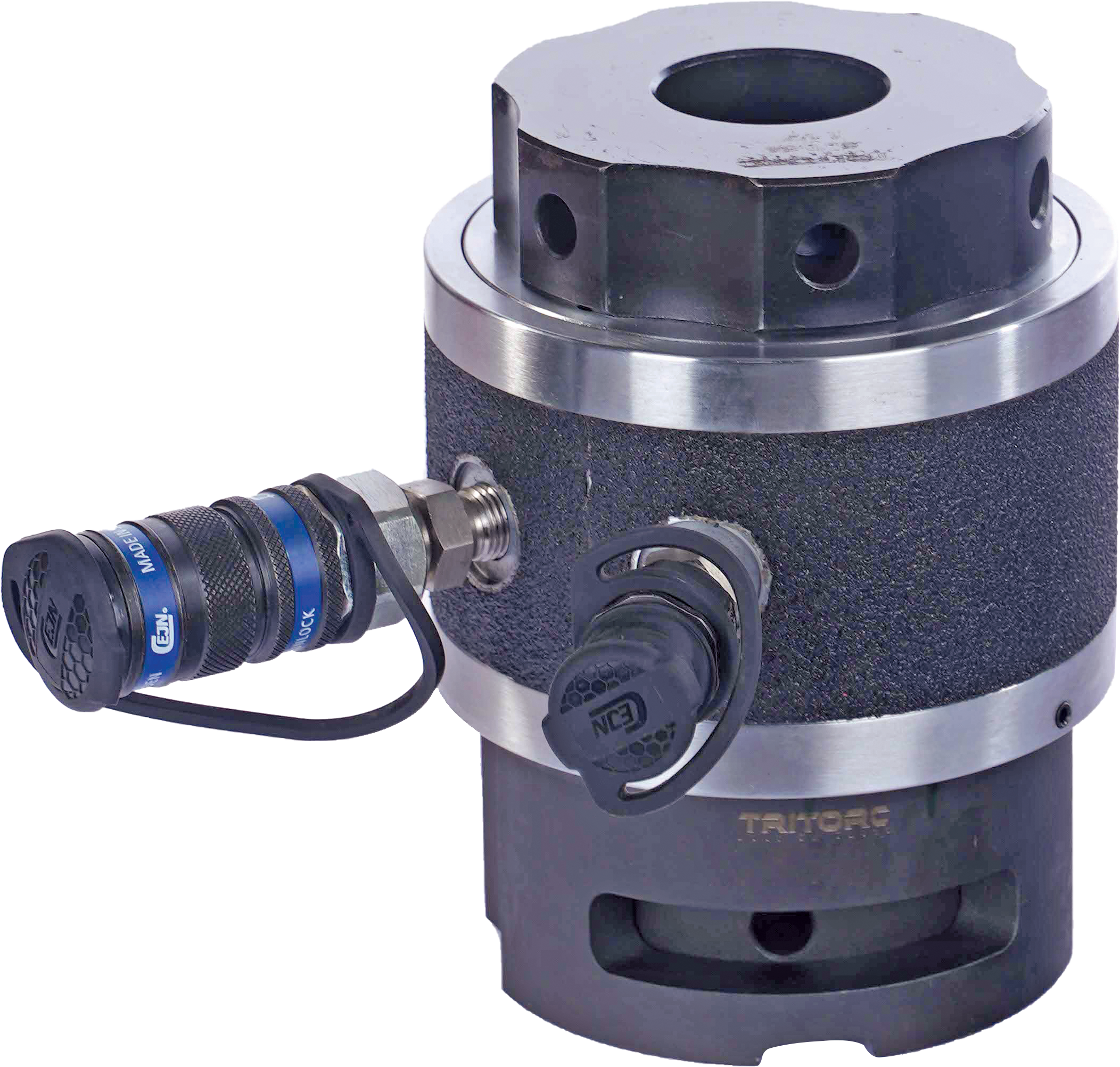

A hydraulic bolt tensioner is a mechanical device that uses pressurized hydraulic fluid to generate controlled axial force, stretching a bolt within its elastic deformation range to achieve precise pre-tension. The system consists of four primary components: a threaded puller that attaches to the bolt's protruding threads, a hydraulic load cell that generates the stretching force, a bridge assembly that transfers the load, and a nut driver socket that rotates the nut during the tensioning sequence.
When activated by an ultra-high pressure hydraulic pump (typically operating at pressures up to 1,500 bar or 21,750 psi), the tensioner applies pure axial tension to elongate the bolt. During this elongation, the bolt's diameter experiences slight elastic deformation, making nut rotation virtually friction-free and eliminating the torsional shear forces that compromise joint integrity in torque-based methods.
The beauty of this technology lies in its ability to directly control the preload force—the tension set by the hydraulic tensioner corresponds precisely to the clamping force achieved, offering predictable and repeatable results that are largely independent of surface conditions, lubrication, or operator technique. This makes hydraulic tensioning the preferred method for achieving accurate bolt loads in critical assemblies where consistency and reliability are non-negotiable.
How Hydraulic Bolt Tensioners Work
The operational mechanism of hydraulic bolt tensioners follows a precisely controlled sequence that ensures optimal tensioning with minimal risk of fastener damage or joint failure.
Step-by-Step Tensioning Process
- 1Tool Positioning: The hydraulic tensioner is positioned over the bolt stud, with the threaded puller engaging the bolt threads that protrude above the nut (typically requiring a minimum protrusion of 1× bolt diameter).
- 2Pressure Application: A hydraulic pump feeds pressurized fluid into the system, creating controlled high pressure that is transmitted to the hydraulic cylinder.
- 3Piston Movement & Bolt Elongation: The hydraulic pressure activates the piston, pulling the bolt axially and stretching it within its elastic limit while the bridge holds the nut stationary.
- 4Nut Tightening: While the bolt remains under tension, the nut is rotated (manually or via nut driver) to advance against the joint face, transferring the tensile load to the joint.
- 5Pressure Release & Retraction: Hydraulic pressure is released, allowing the bolt to contract elastically while maintaining the preload force, with spring-return mechanisms automatically retracting the piston for rapid tool removal.
The hydraulic pressure required is calculated using the formula P = F / A, where P is hydraulic pressure, F is the force required to stretch the bolt (based on desired clamping force), and A is the effective cross-sectional area of the hydraulic piston. This calculation ensures the tensioner delivers precise force without exceeding the bolt's yield strength or the system's safety limits, providing consistent results across multiple bolting cycles.
Types of Hydraulic Bolt Tensioners
Hydraulic bolt tensioners come in several specialized configurations, each engineered for specific applications and environmental conditions. Understanding these variations helps in selecting the optimal tool for your bolting requirements.
| Tensioner Type | Key Features | Typical Applications |
|---|---|---|
| Topside Bolt Tensioners | Easily accessible, straightforward operation, designed for top-of-bolt access where nut placement occurs, ideal for standard industrial environments | ANSI/ASME/API flange connections, pressure vessels, pipeline assemblies, general industrial maintenance |

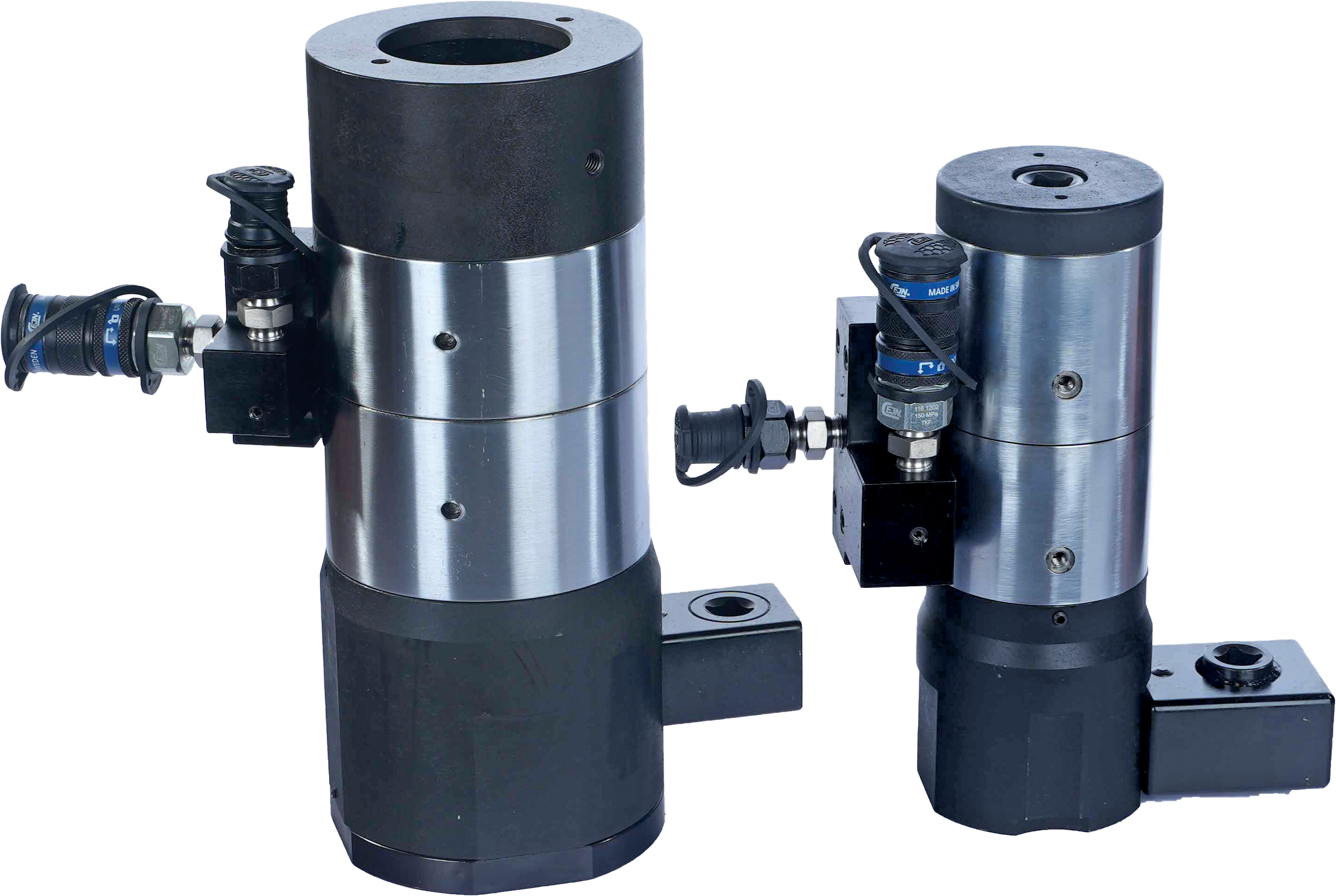

| Spring-Return Tensioners | Automatic piston retraction via spring mechanism, dramatically increases productivity and operator safety, features piston stroke indication and overstroke prevention, twin hydraulic couplings for daisy-chaining multiple tools | Wind turbine tower and nacelle assembly, power generation facilities, oil & gas topside operations, petrochemical plants |
| Subsea Tensioners | Engineered for underwater environments, constructed from corrosion-resistant materials, compatible with remotely operated vehicles (ROVs), designed to withstand extreme subsea pressures and conditions | Offshore oil & gas platforms, underwater pipeline connections, subsea wellhead installations, underwater construction projects |
| Rig Site Tensioners | Robust design for demanding field conditions, provides accurate and efficient tightening for general industrial applications, versatile sizing for multiple bolt diameters | Drilling rig assembly and maintenance, heavy equipment bolting, construction site applications, mining operations |
Pro Tip: Spring-return tensioners (SRT) have become the industry standard due to their enhanced productivity features—the automatic retraction eliminates manual return steps, reducing cycle time by up to 30% compared to traditional manual-return designs. At Tritorc Equipment, our spring-return tensioners cover bolt sizes from 3/4″ to 4-1/4″ (M20 to M115) with exceptional versatility.
Simultaneous tensioning of multiple bolts ensures uniform load distribution across critical flange connections
Critical Design Considerations
The engineering design of hydraulic bolt tensioners demands careful attention to multiple factors that directly impact performance, safety, and operational longevity.
Material Selection & Structural Integrity
High-strength alloys and premium-grade steels are essential to withstand the extreme loads and pressures encountered during tensioning operations. The material selection must ensure the system can apply required tensioning forces without exceeding the bolt's yield strength, necessitating precise calculations of the hydraulic cylinder's size and stroke length.
Critical design factors include preventing leakage from seal rings and annular surfaces, as seal design significantly affects tool performance and reliability. Modern tensioners incorporate fully enclosed load cell designs that eliminate debris entry into piston retraction mechanisms, extending service life and maintaining accuracy.
Hydraulic System Engineering
The hydraulic system architecture must deliver both the required force and stroke while maintaining optimal pressure ratings, seal durability, and fluid compatibility. Modern systems operate at maximum pressures of 1,500 bar (21,750 psi) with typical piston strokes of 10mm, providing the precise control needed for critical applications.
Advanced designs incorporate piston overstroke prevention systems that protect against seal damage, dual hydraulic port configurations enabling multiple tool daisy-chaining, and piston/cylinder misalignment compensation to accommodate real-world installation conditions.
Load Cell Design & Calibration
Accurate load measurement is absolutely critical for ensuring optimal tensioning results. Load cells must be precisely calibrated to monitor applied forces in real-time, providing operators with immediate feedback on whether target preloads have been achieved. Regular calibration according to manufacturer specifications and industry standards like ASME ensures measurement accuracy remains within acceptable tolerances throughout the tool's service life.
Dimensional Compatibility
Bolt diameter represents the most critical dimensional consideration—tensioners must be compatible with specific bolt sizes, grades (8.8, 10.9, etc.), and materials. Professional-grade tensioners accommodate bolt coverage from 3/4″ to 4-1/4″ (M20 to M115) and are designed to fit industry-standard BS1560, ANSI B16.5, and API flanges.
Joint design factors including flange thickness, material composition, and configuration influence required tensioner dimensions and load capacities. Consultation with bolting specialists ensures proper tool selection for specific applications, preventing costly errors and ensuring joint integrity.
Analysis, Testing & Quality Assurance
Rigorous analysis and testing protocols ensure hydraulic bolt tensioners perform reliably under demanding conditions while maintaining the precision required for critical applications.
Finite Element Analysis (FEA)
Advanced computational modeling simulates stress distribution throughout tensioner components under maximum load conditions, enabling engineers to optimize designs before physical prototyping. FEA identifies potential failure points and validates structural integrity across the full operational envelope.
Structural Load Testing
Physical testing validates that tensioners can withstand rated loads without component failure or permanent deformation. Test protocols verify performance at both minimum (typically 233 kN / 23.8 tonf) and maximum (up to 4,903 kN / 500 tonf) load capacities specified for different tensioner models.
Hydraulic Performance Testing
Comprehensive testing verifies hydraulic system performance including pressure stability, flow rates, seal effectiveness, and response characteristics. Systems are validated to maintain consistent performance across thousands of tensioning cycles, ensuring long-term reliability in field conditions.
Load Cell Calibration
Precision calibration ensures load measurement accuracy within required tolerances. Regular calibration checks per ASME standards verify measurement systems remain accurate, with studies showing routine inspections can improve efficiency by approximately 15% through early detection of calibration drift.
Quality Assurance: Professional-grade hydraulic tensioners undergo rigorous third-party certification to ensure compliance with international standards including ASME, API, and ISO specifications. Always verify that your tensioning equipment carries appropriate certifications for your industry and application.
State-of-the-art calibration equipment ensures tensioner load cells maintain accuracy within specified tolerances
Why Choose Hydraulic Bolt Tensioning?
Hydraulic bolt tensioners offer compelling advantages over traditional torque-based methods, making them the preferred choice for critical bolting applications across industries.
Unmatched Precision & Consistency
Achieves bolt preload within ±10% tolerance compared to ±30% or wider with torque methods, ensuring uniform load distribution essential for preventing joint failure.
Enhanced Safety
Eliminates torsional stress on bolts, reducing risk of fatigue failures and thread damage while preventing over-tightening that can lead to catastrophic joint failure.
Increased Efficiency
Multiple bolts can be tensioned simultaneously using daisy-chained tools, dramatically reducing assembly time in large-scale operations like wind turbine installations and pipeline construction.
Extended Component Life
Friction-free tightening eliminates thread damage and galling, extending the service life of both bolts and nuts while reducing maintenance costs over time.
Versatility Across Applications
Suitable for wide range of bolt sizes (3/4″ to 5-3/4″ or M16 to M150) and applications from subsea installations to wind turbines, accommodating diverse industry needs.
Friction-Independent Results
Tensioning accuracy remains consistent regardless of surface conditions, lubrication state, or thread condition—factors that significantly affect torque method reliability.
Industrial Applications
Hydraulic bolt tensioners have become indispensable across industries where joint integrity, safety, and reliability are paramount.
Oil & Gas Industry
In oil and gas operations, hydraulic tensioners ensure leak-proof connections in high-pressure pipelines, pressure vessels, and flange assemblies where even minor joint failures can result in catastrophic environmental and safety consequences. They're essential for both topside platform installations and subsea wellhead connections where operating pressures routinely exceed 10,000 psi.
Critical applications: Pipeline construction and maintenance, offshore platform installations, refinery pressure vessel assembly, subsea manifold connections, wellhead equipment installation.
Wind Energy Sector
Wind turbine assembly demands precise, uniform bolt tensioning to ensure structural stability and safety across tower sections, nacelle mounting, and blade connections. The ability to simultaneously tension multiple bolts dramatically reduces installation time, critical for projects with hundreds of turbines and thousands of bolted connections.
Critical applications: Tower section bolting, blade pitch bearing installation, main bearing assembly, yaw bearing connections, generator mounting, slewing bearing maintenance.
Power Generation
In both conventional and nuclear power plants, hydraulic tensioners provide the fast, accurate tightening required for turbine assemblies, heat exchangers, and boiler connections where unplanned downtime carries enormous economic penalties. Their precision ensures optimal thermal efficiency and prevents costly forced outages.
Critical applications: Steam turbine casing assembly, generator stator bolting, heat exchanger connections, boiler pressure vessel maintenance, condenser flange assembly.
Civil Engineering & Construction
Civil engineering projects leverage hydraulic tensioners for critical structural connections including suspension bridge cable clamps, where difficult access and severe environmental conditions make traditional methods impractical. They enable safe, accurate bolting in challenging scenarios where worker safety and structural reliability are paramount.
Critical applications: Suspension bridge cable clamp installation, steel structure assembly, crane and heavy lift equipment, mining machinery, tunnel boring equipment, dam gate mechanisms.
Heavy Industrial Maintenance
Manufacturing facilities, steel mills, and heavy equipment operations rely on hydraulic tensioners for maintenance of critical bolted connections in rotating equipment, reciprocating machinery, and long-threaded fasteners where precise preload is essential for equipment reliability.
Critical applications: Industrial gearbox assembly, large bearing housing installation, compressor casing maintenance, rolling mill equipment, press frame assemblies, marine propulsion systems.
Maintenance Best Practices
Proper maintenance is essential for maximizing the performance, accuracy, and service life of hydraulic bolt tensioners while preventing costly failures and downtime.
Critical Maintenance Schedule
| Maintenance Task | Frequency | Expected Efficiency Impact |
|---|---|---|
| Calibrate tensioner pressure settings | Monthly | +15% efficiency |
| Inspect and replace worn hydraulic seals | Quarterly | +20% efficiency |
| Lubricate tensioning equipment components | Weekly | +10% efficiency |
| Train operators on correct procedures | Bi-Annually | +25% efficiency |
| Monitor bolt elongation for accuracy | After every use | +12% efficiency |
| Hydraulic circuit maintenance checks | Monthly | +16% efficiency |
Daily Pre-Operation Checks
- Inspect hydraulic connections for leaks or damage
- Verify hydraulic fluid levels and quality
- Ensure tensioner is fully primed before operation
- Check for proper operation of spring-return mechanism
- Confirm load cell readings are within expected range
Long-Term Maintenance
- Regular hydraulic fluid changes per manufacturer specs
- Implement proper filtration to prevent contamination
- Schedule professional calibration and certification annually
- Maintain detailed service logs for all maintenance activities
- Store equipment in clean, dry environment when not in use
ASME Research Insight: Studies demonstrate that implementing routine inspection protocols can reduce wear and tear by approximately 15%, significantly extending equipment lifespan and improving overall operational efficiency. Consistent maintenance practices translate directly to reduced downtime and lower total cost of ownership.
Frequently Asked Questions
What is a hydraulic bolt tensioner and how does it work?
How do I choose the right tensioner for my application?
What maintenance is required for hydraulic bolt tensioners?
What are the advantages of hydraulic tensioning over torque wrenching?
Can hydraulic tensioners be used for subsea applications?
What safety standards apply to hydraulic bolt tensioners?
Omkar Mungekar
Senior Hydraulic Systems Engineer at Tritorc Equipment
Ethan is a mechanical engineer specializing in hydraulic bolting systems, precision tensioning equipment, and industrial tools. With over 15 years of experience in oil & gas, power generation, wind energy, and heavy construction industries, his expertise encompasses design optimization, finite element analysis, and field implementation of hydraulic bolt tensioning solutions. He holds certifications in ASME bolting standards and has contributed to numerous successful projects across offshore platforms, renewable energy installations, and critical infrastructure developments.
Case Studies

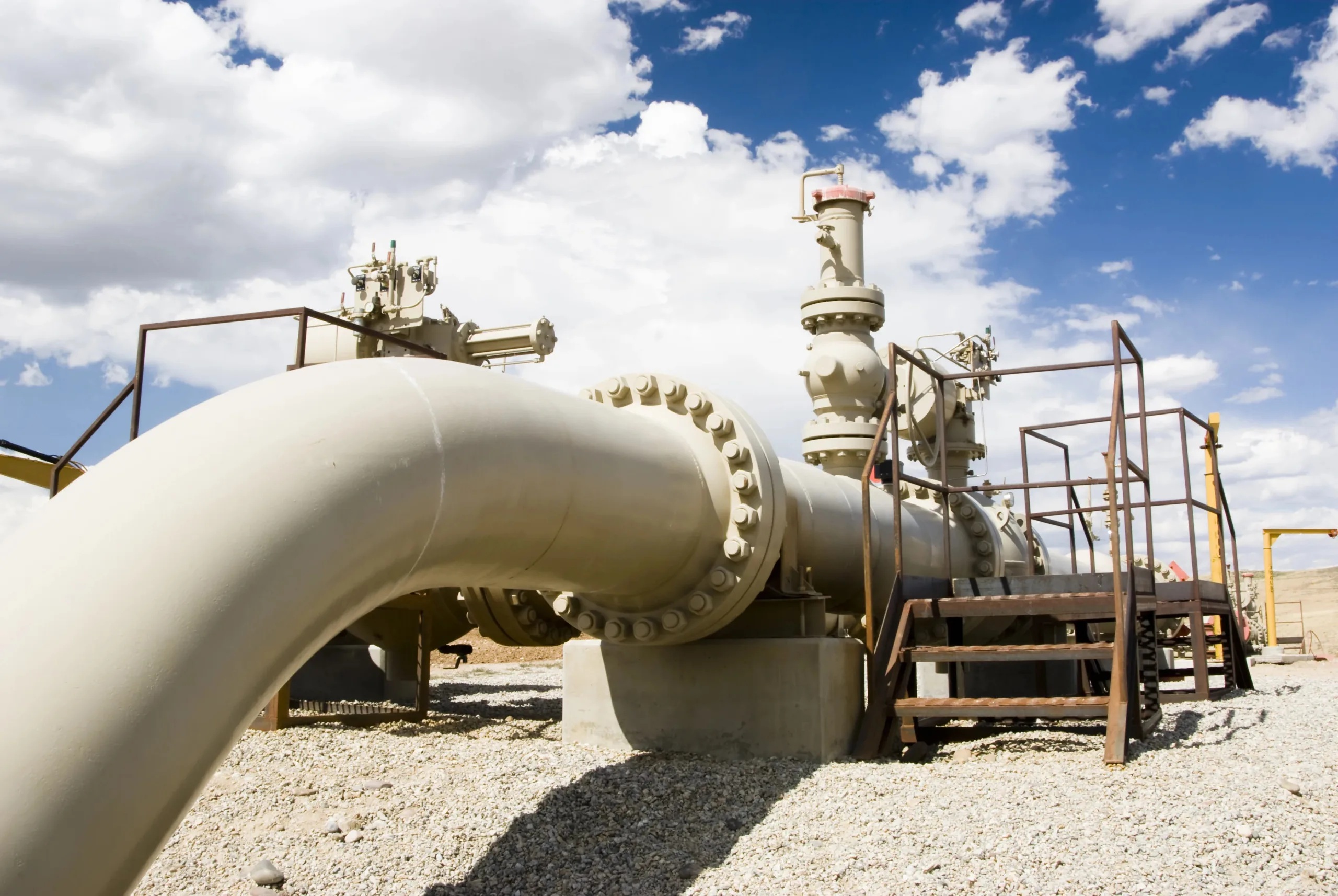

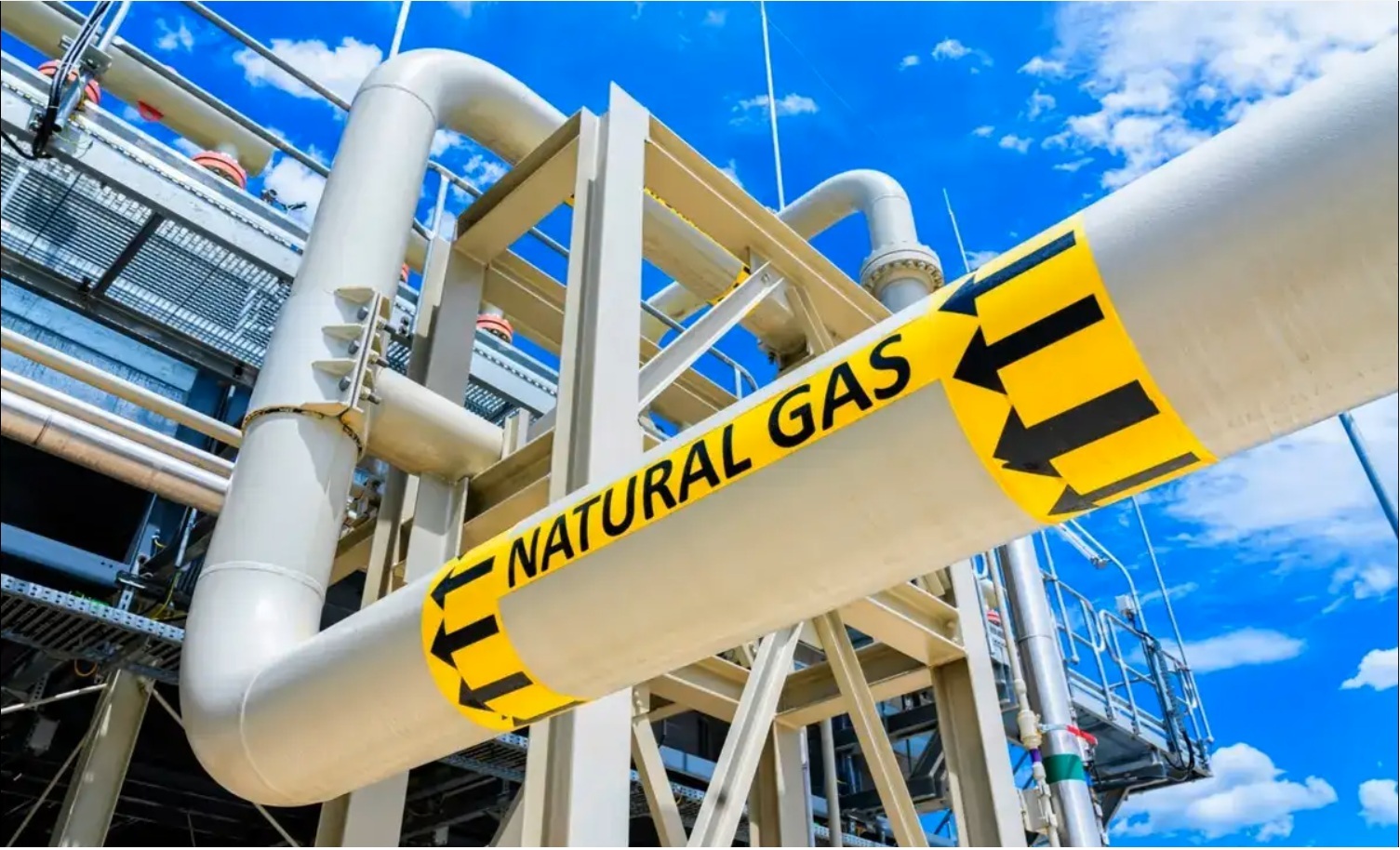

Elevating Power in the Gulf
