Spring Return Hydraulic Bolt Tensioner


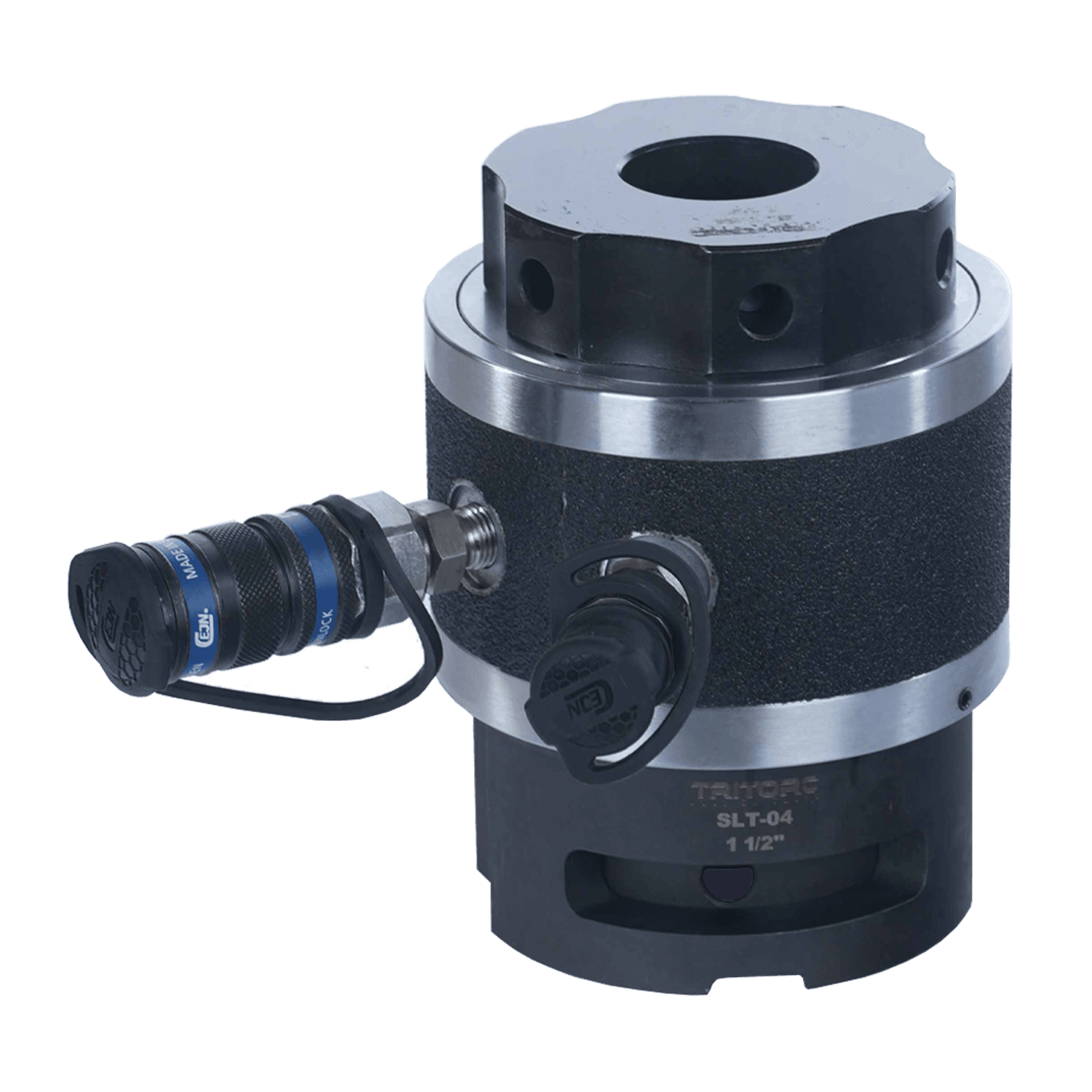

spring return hydraulic bolt tensioner
Catalogue Operation Manual

Features


An hydraulic bolt tensioner with an auto retract mechanism would help with rapid setup of a bolt tensioning operation. This tool would reduce the amount of time required to remove tensioner and have additional advantages such as

  • Spring return mechanism ensures piston retraction of the tensioner, ensuring quick tensioning cycles.
  • Built-in Stroke limit valve safely prevents over stroke.
  • Avoid torsional stresses and galling on the nut seat found in torque wrenches.
  • Simultaneous tensioning of multiple bolts
Metric Imperial
Minimum Tensioning Load Range 160 KN
Maximum Tensioning Load Range 3200 KN
Number of Tool Models 8
Minimum Weight of Tools 5 Kgs 11.02 Lbs.
Maximum Weight of Tools 32 Kgs 70.54 Lbs.
Maximum Rated Pressure 1500 Bar 21555 PSI

Why Use Tritorc's Spring Return Hydraulic Bolt Tensioner

Below is the interactive Three Dimensional Model and the advantageous features that Tritorc's Spring Return hydraulic bolt tensioner provides.

external snap ring for hydraulic bolt tensioner
Special Seal Kit

With a lower coefficient of friction the spring return mechanism retracts the piston faster.

cylinder for hydraulic bolt tensioner
Piston Cylinder Misalignment Compensation

The hydraulic bolt tightening machine has finely machined components that prevent leakages and load loss.

spring return hydraulic bolt tensioner
bridge for hydraulic bolt tensioner
InterChangeable Bridge

A versatile tool that can fit on various nut sizes using the same load cell with different bridge sizes.

ram for hydraulic bolt tensioner
Fully Enclosed Load Cell

To prevent debris from falling into the cylinder and jamming the operation the load cell is fully enclosed.

Get in Touch

Enter your first name
Enter your last name
Enter a valid email address
Enter Country Code
Enter your last name
Enter your company name
Enter your required Product
By clicking Get A Quote I confirm that I have read and agree to the Privacy Statement.
This is a required field

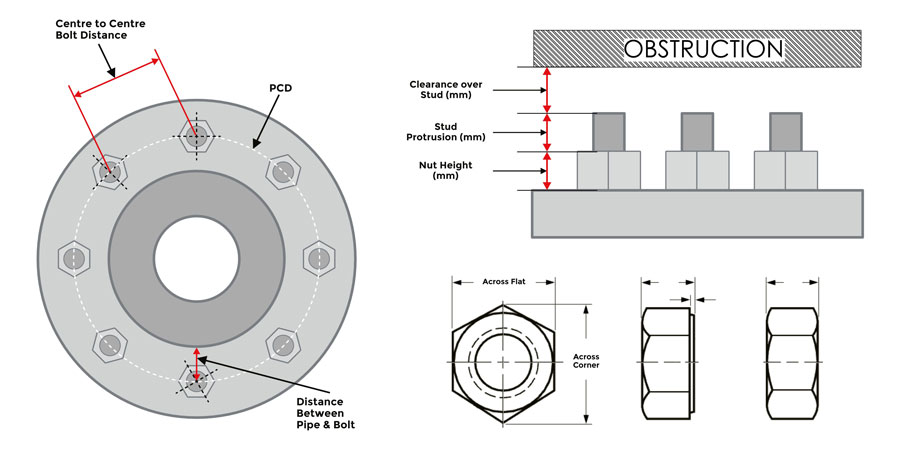

Frequently Asked Questions

Spring Return Hydraulic Bolt Tensioner

spring return hydraulic bolt tensioner

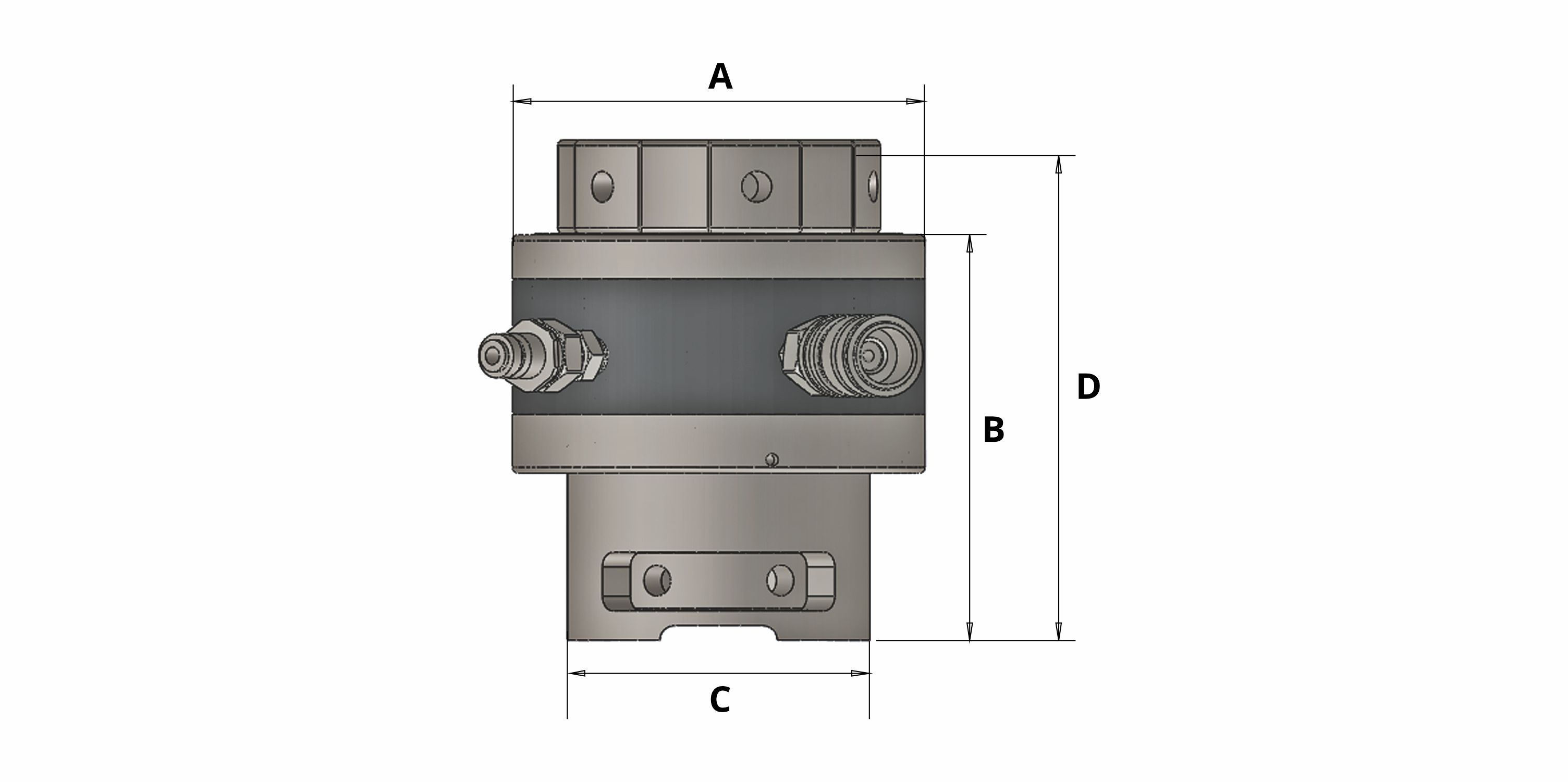

Note: The Dimensional Data relevant to the diagram above is available in the catalogue.

Yes, we offer a 1-year warranty for mechanical components against manufacturing defects.

Usually the delivery of the Tools and Machinery is completed ex-stock with hydraulic pumps with twin ports, hoses and accessories are included in the standard scope of supply.

The height of piston stroke ranges from 8 to 10 mm. Higher strokes and loading capacity are available on request.

Greater efficiency and ease of use are obtained by the use of features such as the following:

  • Anti-slip tool surface: Enhances the grip used to lift the tool manually.
  • Auto Return Mechanism: Faster operation cycles using the Hydraulic Bolt Tightening machine.
  • We use high strength steel alloys to manufacture our hydraulic bolt tensioning equipment

    Hydraulic Bolt Tensioner Specification

    There are many variations of Bolt Tensioner available, choose your required Bolt Tensioning tool. When you ask us for a quotation be rest assured of the best hydraulic bolt tensioner prices. Select from the best hydraulic bolt tensioning tools according to your requirement from our product brochure.

    Model Bolt Size Max Load Hyd. Area Dimension Weight
    A B C D
    Imperial Metric kN (Ton) cm 2  (in 2) mm (in) mm(in) mm(in) mm(in) kg(lbs)
    SLT1 3/4" SLT1-1 M20 SLT1-3 160
    (16.31)
    10.67
    (1.65)
    66
    (2.59)
    93
    (3.66)
    63
    (2.48)
    136
    (5.35)
    1.4
    (3.08)
    7/8" SLT1-2 M22 SLT1-4
    SLT2 1" SLT2-1 M24 SLT2-3 280
    (28.55)
    18.67
    (2.89)
    87
    (3.42)
    117
    (4.60)
    68
    (2.67)
    175
    (6.88)
    2.7
    (5.95)
    1-1/8" SLT2-2 M27 SLT2-4
    SLT3 1" SLT3-1 M24 SLT3-5 450
    (45.88)
    30.01
    (4.65)
    103
    (4.5)
    117
    (4.60)
    75
    (2.95)
    175
    (6.88)
    4.1
    (9.03)
      M27 SLT3-6 117
    (4.60)
    75
    (2.95)
    175
    (6.88)
    1-1/8" SLT3-2 M30 SLT3-7 120
    (4.72)
    80
    (3.14)
    181
    (7.12)
    1-1/4" SLT3-3 M33 SLT3-8 123
    (4.84)
    84
    (3.30)
    188
    (7.40)
    1-3/8" SLT3-4 M36 SLT3-9 126
    (4.96)
    89
    (3.50)
    195
    (7.67)
    SLT4 1-1/4” SLT4-1 M33 SLT4-5 660
    (67.30)
    44.01
    (6.82)
    118
    (4.64)
    123
    (4.84)
    88
    (3.46)
    190
    (7.48)
    5.4
    (11.9)
    1-3/8” SLT4-2 M36 SLT4-6 126
    (4.96)
    96
    (6.77)
    197
    (7.75)
    1-1/2” SLT4-3 M39 SLT4-7 130
    (8.11)
    96
    (3.77)
    203
    (7.99)
    1-5/8” SLT4-4 M42 SLT4-8 133
    (5.23)
    105
    (4.13)
    209
    (8.22)
    SLT5 1-1/2” SLT5-1 M39 SLT5-6 1000
    (101.97)
    66.68
    (10.33)
    140.5
    (5.53)
    132
    (5.31)
    112
    (4.40)
    211
    (8.30)
    8.4
    (18.51)
    1-5/8” SLT5-2 M42 SLT5-7 135
    (5.31)
    114
    (4.48)
    217
    (8.54)
    1-3/4” SLT5-3 M45 SLT5-8 139
    (5.47)
    118
    (4.64)
    223
    (8.77)
    1-7/8” SLT5-4 M48 SLT5-9 142
    (5.59)
    114
    (4.48)
    230
    (9.05)
     2” SLT5-5   145
    (5.70)
    120
    (4.72)
    236
    (9.29)
    SLT6 2” SLT6-1 M52 SLT6-5 1500
    (152.95)
    100.03
    (15.50)
    175.5
    (6.90)
    148
    (5.82)
    120
    (4.72)
    246
    (6.68)
    13.8
    (30.42)
    2-1/4” SLT6-1 M56 SLT6-6 154
    (6.06)
    138
    (5.43)
    259
    (10.19)
      M60 SLT6-7 161
    (6.33)
    138
    (5.43)
    259
    (10.19)
    2-1/2” SLT6-3 M64 SLT6-8 161
    (6.33)
    153
    (6.02)
    272
    (10.70)
    2-3/4” SLT6-4 M68 SLT6-9 167
    (6.57)
    156
    (6.14)
    284
    (11.18)
    SLT7 2-3/4” SLT7-1 M72 SLT7-5 2500
    (254.92)
    166.71
    (25.41)
    129
    (8.62)
    167
    (6.57)
    157
    (6.18)
    294
    (11.57)
    23
    (50.70)
    3” SLT7-2 M76 SLT7-6 171
    (6.73)
    158
    (6.22)
    307
    (12.08)
      M80 SLT7-7 180
    (7.08)
    190
    (7.48)
    310
    (12.20)
    3-1/4” SLT7-3 M85 SLT7-8 180
    (7.08)
    190
    (7.48)
    320
    (12.59)
    3-1/2” SLT7-4 M90 SLT7-9 186
    (7.32)
    205
    (8.07)
    332
    (13.07)
    SLT 8 3-1/2” SLT8-1 M90 SLT8-4 3200
    (326.30)
    213.39
    (33.07)
    252
    (9.92)
    186
    (7.32)
    200
    (7.87)
    339
    (13.34)
    32
    (70.54)
      M95 SLT8-5 186
    (7.32)
    200
    (7.87)
    346
    (13.62)
    3-3/4” SLT8-2 M100 SLT8-6 192
    (7.55)
    200
    (7.87)
    352
    (13.85)
    4” SLT8-3   199
    (7.83)
    210
    (8.26)
    364
    (14.33)

    Note: According to client's requirement the size and tensioning force of the tool can be customized.
